Products>>Chip inductors Series |
|
|
〓 BF TYPESee packing instructions |

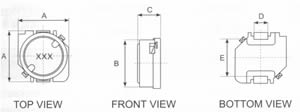

| ● EXTERNAL DIMENSIONS
UNIT：mm |
|
|
| PARTNO． |
A(max) |
中B(max) |
C(max) |
D |
E(Ref) |
| BF7630F |
7．6 |
6．8 |
3．0 |
2．0±O．2 |
5．4 |
| BF7630C |
7．6 |
6 8 |
3．0 |
2．0±0．2 |
5．4 |
| BF7635F |
7．6 |
6．8 |
3．5 |
2．0±0．2 |
5．4 |
| BF7635C |
7．6 |
6．8 |
3．5 |
2．0±0．2 |
5．4 |
| BF7651F |
7．6 |
6．8 |
5．1 |
2．0±O．2 |
5．4 |
| BF7651C |
7．6 |
6．8 |
5．1 |
2．0±O．2 |
5．4 |
| BF7681C |
7．6 |
6．8 |
8．1 |
2．0±0．2 |
5．4 |
| BF1205C |
12．8 |
12．2 |
5．9 |
3．0±O．2 |
8．6 |
| BF1206C |
12．8 |
12．2 |
6．9 |
3．0±0．2 |
8．6 |
| BF1207C |
12．8 |
12．2 |
7．9 |
3．O±0．2 |
8．6 |
|
|
| ● PART NUMBERING SYSTEM |
 |
1 SERIES NAME 品名 S指备银 series，A指品名号
2
DIMENSIONS 尺寸 外围x高度
3 INDUCTANCE 电感值
前两位属有效数字，第三位表零的个数
4 TOLERANCE CODE 公差
J：±5％，K：±10％，L：±15％M：±20％，P：±25％，N：±30％
5 PACKING
CODE 包装方式 R：Tape&Reel(卷装)B：In Bulk (袋装) |
● FEATURES
Various
high power inductors are superior to be high saturaton
for surface mounting
● APPLICATl0NSPower supply for VTR，OA equipment
Digital camera，LCD television set notebook
PC，portable
communication equipments，DC/DC
converters，eT-2．
。 |
| ★
Design As Gustomer's Requested Specifications. |
|
