〓 CDH TYPE See packing instructions |

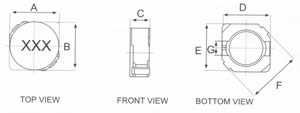

| ● EXTERNAL DIMENSIONS
UNIT：mm |
|
 |
| PARTNO. |
A |
B |
C(nrmx) |
D |
E |
F(max) |
G(Ref) |
| CDH3818 |
3.8±0.3 |
3.8±0.3 |
1.8 |
3.8±0.3 |
3.8±0.3 |
4.15 |
1.15 |
| CDH4720 |
4.7±0.3 |
4.7±0.3 |
2.0 |
4，7±0.3 |
4.7±0.3 |
6.9 |
1.5 |
| CDH4730 |
4.7±0.3 |
4.7±0.3 |
3.0 |
4.7±O.3 |
4.7±0.3 |
6.9 |
1.5 |
| CDH5720 |
5.7±0.3 |
5.7±O.3 |
2.0 |
5.7±0.3 |
5.7±O.3 |
8.2 |
2.0 |
| CDH5730 |
5.7±0.3 |
5.7±0.3 |
3.O |
5.7±0.3 |
5.7±O.3 |
8.2 |
2.0 |
| CDH6730 |
6.7±0.3 |
6.7±O.3 |
3.O |
6.7±O.3 |
6.7±O.3 |
9.5 |
2.O |
| CDH6740 |
6.7±0.3 |
6.7±O.3 |
4.0 |
6.7±O.3 |
6.7±0.3 |
9.5 |
2.0 |
|
|
| ● PART NUMBERING SYSTEM |
 |
1 SERIES NAME 品名 S指备银 series，A指品名号
2
DIMENSIONS 尺寸 外围x高度
3 INDUCTANCE 电感值
前两位属有效数字，第三位表零的个数
4 TOLERANCE CODE 公差
J：±5％，K：±10％，L：±15％M：±20％，P：±25％，N：±30％
5 PACKING
CODE 包装方式 R：Tape&Reel(卷装)B：In Bulk (袋装) |
● FEATURES
Various
high power inductors are superior to be high saturaton
for surface mounting
● APPLICATl0NSPower supply for VTR，OA equipment
Digital camera，LCD television set notebook
PC，portable
communication equipments，DC/DC
converters，eT-2．
。 |
| ★
Design As Gustomer's Requested Specifications. |
|
