CDH TYPE |
 |
| ● REEL DIMENSIONS＆PACKING UNIT(卷轴尺寸及包装数量) NUIT(mm) |
PART
NUMBER
|
DIMENSIONS OF REEL
卷轴尺寸 |
PACKAGINGUNIT
包装数 |
| A |
B |
C |
W |
| CDH3818 |
330 |
75.0±2.00 |
13.5±0.50 |
12.0±0.50 |
2000pcs/r |
| CDH4720 |
330 |
75.0±200 |
135±0.50 |
120±0.50 |
2000pcs/r |
| CDH4730 |
330 |
75.0±2.00 |
13.5-I-0.50 |
12.0±0.50 |
2000pcs/r |
| CDH5720 |
330 |
75.0±2.00 |
13.5±0.50 |
12.0±0.50 |
2000pcs/r |
| CDH5730 |
330 |
75.0±2.00 |
13.5±0.50 |
12.0±0.50 |
2000pcs/r |
| CDH6730 |
330 |
750±2.00 |
13.5±0.50 |
160±0.50 |
1500pcs/r |
| CDH6740 |
330 |
75.0±2.00 |
13.5±0.50 |
16.0±0.50 |
1000pcs/r |
|

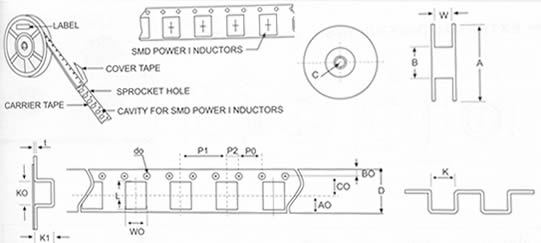

| ● CARRIER TAPE DIMENSIONS(载带尺寸) NUIT(mm) |
| AO |
4.75±0.10 |
4.75±0.10 |
4.75±0.10 |
4.75±0.10 |
4.75±0.10 |
4.75±0.10 |
4.75±0.10 |
| BO |
1.75±0.10 |
175±0.10 |
1.75±0.10 |
1.75±0.10 |
1.75±0.10 |
1.75±010 |
1.75±010 |
| C0 |
5.50±0.10 |
5.50±0.10 |
5.50±0.10 |
5.50±0.10 |
5.50±0.10 |
5.50±0.10 |
5.50±0.10 |
| D |
12.00±0.30 |
12.00±0.30 |
1200±030 |
12.00±0.30 |
1200±030 |
12.00±0.30 |
12.00±0.30 |
| K |
4.30±0.20 |
5.20±0.20 |
5.20±0.20 |
6.20±0.20 |
6.20±0.20 |
7.20±0.20 |
7.20±0.20 |
| K0 |
4.30±0.20 |
5.20±0.20 |
5.20±0.20 |
6.20±0.20 |
620±0.20 |
7.20±0.20 |
7.20±0.20 |
| K1 |
2.00±0.10 |
2.20±0.10 |
3.20±0.10 |
2.20±0.10 |
3.20±0.10 |
3.20±0.10 |
4.20±0.10 |
| L |
4.70±0.20 |
5.60±0.20 |
5.60±0.20 |
6.20±0.20 |
6.20±0.20 |
7.20±020 |
7.20±0.20 |
| W0 |
4.70±0.20 |
5.60±0.20 |
5.60±0.20 |
6.20±0.20 |
6.20±0.20 |
7.20±0.20 |
7.20±0.20 |
| PO |
4.00±0.10 |
4.00±O.10 |
400±0.10 |
4.00±0.10 |
400±0.10 |
4.00±0.10 |
4.00±0.10 |
| P1 |
8.00±0.10 |
8.00±0.10 |
8.00±0.10 |
8.00±0.10 |
8.OO±010 |
12.00±0.10 |
12.00±0.10 |
| P2 |
2.OO±0.05 |
2.00±0.05 |
2.OO±0.05 |
2.00±0.05 |
2.00±0.05 |
2.00±0.05 |
2.00±0.05 |
| dO |
1.55±0.05 |
1.55±0.05 |
1.55±0.05 |
1.55±0.05 |
1.55±0.05 |
1.55±0.05 |
1.55±0.05 |
| t |
0.40±0.05 |
0.40±0.05 |
0.40±005 |
0.40±005 |
0.40±0.05 |
0.40±005 |
0.40±005 |
|
|
| Return |
|
|
|
|
