Products>>Chip inductors Series |
|
|
〓 CNF
TYPE See packing instructions |

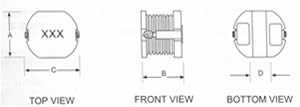

| ● EXTERNAL DIMENSIONS
UNIT：mm |
|
 |
| TYPE(型式) |
A |
B |
C |
D(Ref) |
| CNF43 |
4．0±0．3 |
3．5±0．3 |
4．7±0．5 |
1．2 |
| CNF54 |
5．2±0．3 |
4．8±0．3 |
6 0±0．5 |
1 6 |
| CNF73 |
7．0±0．3 |
3．8±0．3 |
8．0±0．5 |
2．0 |
| CNF75 |
7．0±0．3 |
5．2±0．3 |
8．0±0．5 |
2．0 |
| CNFl05 |
9．0±0．3 |
5．5±0．3 |
10±O．5 |
4．0 |
|
|
| ● PART NUMBERING SYSTEM |
 |
1 SERIES NAME 品名 S指备银 series，A指品名号
2
DIMENSIONS 尺寸 外围x高度
3 INDUCTANCE 电感值
前两位属有效数字，第三位表零的个数
4 TOLERANCE CODE 公差
J：±5％，K：±10％，L：±15％M：±20％，P：±25％，N：±30％
5 PACKING
CODE 包装方式 R：Tape&Reel(卷装)B：In Bulk (袋装) |
| ● FEATURES |
Various high power inductors are superior
to be high saturation for surface
mounting．
|
| ● APPLICATIONS |
Power supply for VTR，OA equipment Digital
camera，LCD television set notebook
PC，portable
communication equipments，DC/DC
converters，eT-2．
|
| ★
Design As Gustomer's Requested Specifications. |
|
