〓 CD
TYPE See packing instructions |

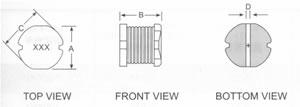

| ● EXTERNAL DIMENSIONS
UNIT：mm |
|
 |
| PARTNO． |
A |
B |
C |
D(Ref) |
| CD32 |
3．O±0．3 |
2．1±O．3 |
3．5±0．3 |
1．0 |
| CD43 |
4．O±O．3 |
3．2±0．3 |
4．5±0．3 |
1．4 |
| CD52 |
5．2±0．3 |
2．1±0．3 |
5．8±0．3 |
1．6 |
| CD53 |
5．2±O．3 |
3．2±O．3 |
5．8±0．3 |
1．6 |
| CD54 |
5．2±0．3 |
4．5±0．3 |
5．8±0．3 |
1．6 |
| CD73 |
7．O±0．3 |
3．5±O．4 |
7．8±0．3 |
2．4 |
| CD75 |
7．0±O．3 |
5．O±0．4 |
7．8±0．3 |
2．4 |
| CDl04 |
9．0±0．3 |
4．0±O．5 |
1 0．0±O．3 |
3．1 |
| CDl05 |
9．0±0．3 |
5．4±0．5 |
1 0．0±0．3 |
3．1 |
| CDl06 |
9．0±0．3 |
6．6±O．5 |
1 0．0±O．3 |
3．1 |
|
|
| ● PART NUMBERING SYSTEM |
 |
1 SERIES NAME 品名 S指备银 series，A指品名号
2
DIMENSIONS 尺寸 外围x高度
3 INDUCTANCE 电感值
前雨位属有效数字，第三位表零的个数
4 TOLERANCE CODE 公差
J：±5％，K：±10％，L：±15％M：±20％，P：±25％，N：±30％
5 PACKING
CODE 包装方式 R：Tape&Reel(卷装)B：In Bulk (袋装) |
| ● FEATURES |
Various high power inductors are superior
to be high saturation for surface
mounting．
|
| ● APPLICATIONS |
Power supply for VTR，OA equipment Digital
camera，LCD television set notebook
PC，portable
communication equipments，DC/DC
converters，eT-2．
|
| ★
Design As Gustomer's Requested Specifications. |
|
