Products>>Chip inductors Series |
|
|
CD TYPE |
 |

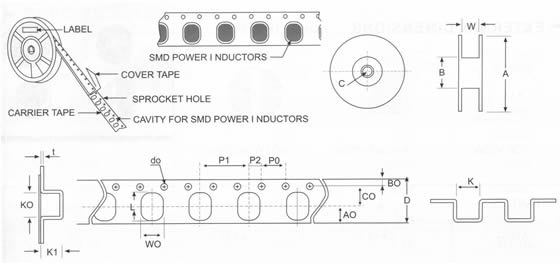

| ◆ REEL DIMENSIONS＆PACKING
UNIT(卷轴尺寸及包装数量) UNIT:mm |
PART
NUMBER
品名 |
DIMENSlONS OF REEL
卷轴尺寸 |
PACKAGING UNIT
包装敷 |
| A |
B |
C |
VV |
| CD32 |
330 |
75．0±2．00 |
13．50±O．50 |
1 2．0±0．50 |
2000pcs/r |
| CD43 |
330 |
75．0±2．00 |
13．50±0．50 |
12．O±O．50 |
1500pcs/r |
| CD53/54 |
330 |
75．0±2．00 |
13．50±0．50 |
1 6．0±0．50 |
1500pcs/r |
| CD73 |
330 |
75．0±2．00 |
13．50±O 50 |
1 6．O±O．50 |
1000pcs/r |
| CD75 |
330 |
75．0±2．00 |
13．50±0．50 |
24．0±0．50 |
1000pcs/r |
| CD104 |
330 |
75．0±2 00 |
13．50±0．50 |
24．O±0．50 |
500pcs/r |
| CD105 |
330 |
75．0±2．00 |
13．50±0．50 |
24．0±0．50 |
500pcs/r |
|
| ◆ CARRIER TAPE
DIMENSl0NS(载带尺寸) UNIT:mm |
| SYM |
WSA32 |
WSA43 |
WSA53 |
WSA54 |
WSA73 |
WSA75 |
WSAl04 |
WSAl05 |
| A0 |
4.75±0.10 |
4.75±0.10 |
4.75±0.10 |
4.75±0.10 |
6.75±0.10 |
6.75±0.10 |
10.75±0.10 |
10.75土0.10 |
| BO |
1.75±0.10 |
175±0.10 |
175±O.10 |
1.75±O.10 |
1.75±0.10 |
1.75±0.10 |
175±0.10 |
1.75±0.10 |
| C0 |
5.50±0.10 |
5.50±O.10 |
5.50±0.10 |
5.50±0.10 |
7.50±0.10 |
7.50±0.10 |
11.50±0.10 |
11.50±0.10 |
| D |
12.00±0.30 |
12.00±030 |
12.00±0.30 |
12.00±0.30 |
1600±O.30 |
1600±0.30 |
24.00±030 |
2400±0.30 |
| K |
3.50±0.20 |
4.50±0.20 |
5.70±O.20 |
5.70±O.20 |
7.70±0.20 |
7.70±0.20 |
9.65±0.20 |
9.65±0.20 |
| K0 |
4.00±0.20 |
5.00±O.20 |
6.30±0.20 |
6.30±0.20 |
8.40±0.20 |
8.40±O.20 |
10.90±O.20 |
10.90±0.20 |
| K1 |
3.00±0.10 |
4.OO±0.10 |
4.00±0.10 |
5.05±0.10 |
4.55±0.10 |
5.60±0.10 |
4.60±0.10 |
6.10±0.10 |
| L |
4.40±O.20 |
5.40±020 |
6.55±0.20 |
6.55±020 |
8.80±0.20 |
8.80±0.20 |
11.30±0.20 |
11.30±0.20 |
| W0 |
3.90±O.20 |
4.90±0.20 |
5.80±0.20 |
5.80±0.20 |
8.10±0.20 |
8.10±0.20 |
10.05±O.20 |
10.05±0.20 |
| P0 |
4.00±0.10 |
4.00±0.10 |
4.00±O.10 |
4.00±0.10 |
4.00±0.10 |
4.00±0.10 |
4.00±0.10 |
4.00±0.10 |
| P1 |
8.00±0.10 |
8.00±0.10 |
8.00±O.10 |
8.00±0.10 |
12.00±0.10 |
12.00±0.10 |
12.00±0.10 |
12.00±0.10 |
| P2 |
2.00±0.05 |
200±O.05 |
2.00±0.05 |
2.00±0.05 |
2.00±005 |
2.00±O.05 |
2.00±O.05 |
2.00±0.05 |
| d0 |
1.55±0.05 |
1.55±0.05 |
1.55±0.05 |
1.55±0.05 |
1.55±O.05 |
1.55±0.05 |
1.55±0.05 |
1.55±0.05 |
| t |
O.40±005 |
O.40±005 |
0.40±0.05 |
0.40±0.05 |
0.40±0.05 |
0.40±0.05 |
0.40±O.05 |
O.40±0.05 |
|
|
|
|
