〓 T-2B TYPE |

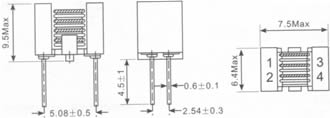

| ● EXTERNAL DIMENSIONS
UNIT：mm(外形尺寸) |
|
|
PARTNO.
|
PARALLEL
|
SERIES |
Inductance
(μH)
@1KHz |
Impedance
(Ω)Min.
|
DCResistance
(mΩ)Max
|
Inductance
(μH)
@1KHz |
Impedance
(Ω)Min.
|
DCResistance
(mΩ)Max |
| T-2B422-350 |
35±50% |
400@100MHz |
30 |
120(Typ) |
1575@40MHz |
60 |
| T-2B422-600 |
60±35% |
800@80MHz |
40 |
200(Typ) |
3000@20MHz |
80 |
| T-2B422-101 |
100±35% |
1100@50MHz |
55 |
300(Typ) |
300@10MHz |
110 |
|

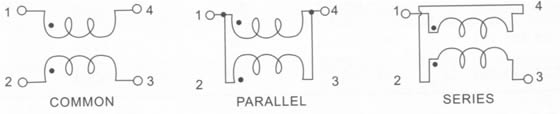

| ● CIRCUIT(原理图) |
|
| ● FEATURES（特性） |
Easy mounting on pc board. L-element
circuit ensures excellent attenuation
characteristics
over a wide frequency range |
| ● APPLICATIONS (用途) |
EMI countermeasures at signal lines of
personal computers microcomputers,
peripheral
devices,eT-2. Countermeasures against common-mode noise
at
composite video signals. |

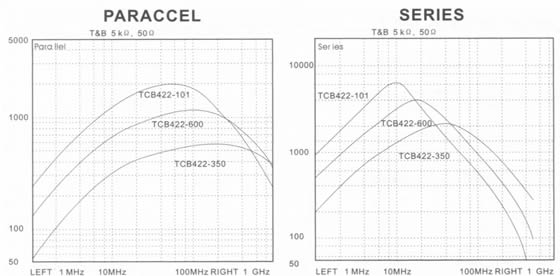

| ● Impedance & Frequency (阻抗
/频率图） |
|
| ★
Design As Gustomer's Requested Specifications. (
根据客户要求参数来设计！) |
