〓 B33 TYPE |

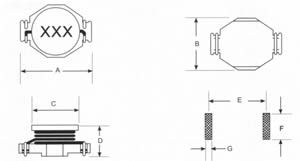

| ● EXTERNAL DIMENSIONS
UNIT：mm(外形尺寸) |
|
 |
| PARTNO． |
A(max) |
B(max) |
C |
D(max) |
E(max) |
F(max) |
G(max) |
| B331813 |
889 |
6．10 |
4．57±0．3 |
5．0 |
6．99 |
4．01 |
1．91 |
| B333316 |
13．21 |
9．91 |
8．38±03 |
6．35 |
10．16 |
4．06 |
152 |
| B335022 |
22．35 |
16．26 |
12．7±0．3 |
8．0 |
17．53 |
8．64 |
3．18 |
|
|
| ● PART NUMBERING SYSTEM(品名系统) |
|
1 SERIES NAME 品名 S指备银系列，A指品名号
2
DIMENSIONS 尺寸 外围x高度
3 INDUCTANCE 电感值
前雨位属有效数字，第三位表零的个数
4 TOLERANCE CODE 公差
J：±5％，K：±10％，L：±15％M：±20％，P：±25％，N：±30％
5 PACKING
CODE 包装方式 R：Tape&Reel(卷装)B：In Bulk (袋装) |
| ● FEATURES (特性) |
The Surface Mount Inductors are designed
for the smallest possible size and high performane．They
a re with high energy storage and very Low resistance
making
them the ideal inductors for DC—DC conversion
in the following
applications．
表面贴装高功率电感，具有小型化，高品质，高能量储存和低阻值之特性。 |
| ● APPLICATIONS (用途) |
VGA display card，Notebook
Computers，PDAS，Step-up and step-down
converters，Flash
Memory
programmers，eT-2．
电脑示板卡，笔记本电脑，后置偏转加速电极，升降压转换器，
脉冲记忆程序设计等。 |
| ★
Design As Gustomer's Requested Specifications. (
根据客户要求参数来设计！) |
