〓 CDH TYPE |

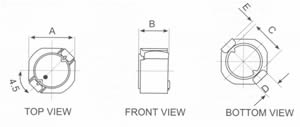

| ● EXTERNAL DIMENSIONS
UNIT：mm(外形尺寸) |
|
 |
| PARTNO． |
A(max) |
B(max) |
C |
D |
E |
| CDH518 |
5．2 |
1．8 |
4．2±0．5 |
1．4±O．5 |
0．6±0．3 |
| CDH520 |
5．2 |
2．O |
4．2±0．5 |
14±0．5 |
06±0．3 |
| CDH530 |
5．2 |
3．0 |
4．2±0．5 |
1．4±0．5 |
0．6±0．3 |
|
|
| ● PART NUMBERING SYSTEM(品名系统) |
 |
1 SERIES NAME 品名 S指备银系列，A指品名号
2
DIMENSIONS 尺寸 外围x高度
3 INDUCTANCE 电感值
前雨位属有效数字，第三位表零的个数
4 TOLERANCE CODE 公差
J：±5％，K：±10％，L：±15％M：±20％，P：±25％，N：±30％
5 PACKING
CODE 包装方式 R：Tape&Reel(卷装)B：In Bulk (袋装) |
| ● FEATURES (特性) |
Magnetically shielded and low DC
resistance．Suitable for ra rge currents．ideal for va
riety of DC-DC converter inductor applications．Most
suitable for
portable electronic equipments requining
low profile and high density mounting． |
| ● APPLICATIONS (用途) |
| Notwebool Computers．PDAS．Step-up and
Step-down Converters．Flash memory Programers，eT-2． |
| ★
Design As Gustomer's Requested Specifications. (
根据客户要求参数来设计！) |
