BF TYPE |
 |
| ● REEL DIMENSIONS＆PACKING UNIT(卷轴尺寸及包装数量) NUIT(mm) |
PART
NUMBER
品名 |
DIMENSIONS OF REEL
卷轴尺寸 |
PACKAGINGUNIT
包装数 |
| A |
B |
C |
W |
| BF7630F/7630C |
330 |
75.0±2.00 |
13.50±0.50 |
16.0±0.50 |
1000pcs/r |
| BF7635F/7635C |
330 |
75.0±2.00 |
13.50±050 |
16.0±0.50 |
1000pcs/r |
| BF7651F/7651C |
330 |
75.0±2.00 |
13.50±0.50 |
16.0±O.50 |
1000pcs/r |
| BF7681C |
330 |
75.0±2.00 |
13.50±0.50 |
240±050 |
500pcs/r |
|

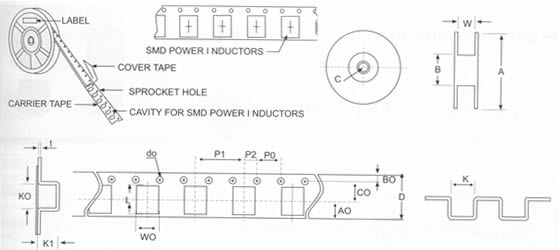

| ● CARRIER TAPE DIMENSIONS(载带尺寸) NUIT(mm) |
| SYM |
BF7630F/7630C |
BF7635F/7635C |
BF7651F/7651C |
BF7681C |
| A0 |
6.75±0.10 |
6.75±0.10 |
6.75±0.10 |
10.75±0.10 |
| BO |
1.75±0.10 |
1.75±0.10 |
1.75±0.10 |
1.75±0.10 |
| C0 |
7.50±0.10 |
7.50±0.10 |
7.50±0.10 |
11.50±0.10 |
| D |
16.00±0.30 |
1600±0.30 |
16.00±0.30 |
24.00±0.30 |
| K |
7.80±0.20 |
7.80±0.20 |
7.80±0.20 |
7.80±0.20 |
| KO |
7.80±0.20 |
7.80±0.20 |
7.80±0.20 |
780±0.20 |
| K1 |
3.30±0.10 |
3.80±O.10 |
5.40±0.10 |
8.40±0.10 |
| L |
8.20±0.20 |
8.20±0.20 |
8.20±O.20 |
8.20±0.20 |
| W0 |
8.20±O.20 |
8.20±0.20 |
8.20±0.20 |
8.20±0.20 |
| P0 |
4.00±0.10 |
4.00±0.10 |
4.00±0.10 |
4.00±0.10 |
| P1 |
12.00±0.10 |
12.00±0.10 |
12.00±0.10 |
16.00±0.10 |
| P2 |
2.00±0.05 |
2.00±0.05 |
2.00±0.05 |
2.00±0.05 |
| dO |
1.55±0.05 |
1.55±0.05 |
1.55±0.05 |
1.55±0.05 |
| t |
0.40±005 |
0.40±0.05 |
0.40±005 |
0.40±0.05 |
|
|
