Products>>Plug-in inductor series |
|
|
¡þ T-2B TYPE |

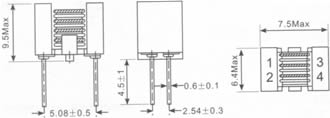

| ¡ñ¡¡EXTERNAL DIMENSIONS
UNIT£ºmm |
|
|
¡¡
PARTNO.
|
PARALLEL
|
SERIES |
Inductance
(¦ÌH)
@1KHz |
Impedance
(¦¸)Min.
|
DCResistance
(m¦¸)Max
|
Inductance
(¦ÌH)
@1KHz |
Impedance
(¦¸)Min.
|
DCResistance
(m¦¸)Max |
| T-2B422-350 |
35¡À50% |
400@100MHz |
30 |
120(Typ) |
1575@40MHz |
60 |
| T-2B422-600 |
60¡À35% |
800@80MHz |
40 |
200(Typ) |
3000@20MHz |
80 |
| T-2B422-101 |
100¡À35% |
1100@50MHz |
55 |
300(Typ) |
300@10MHz |
110 |
|

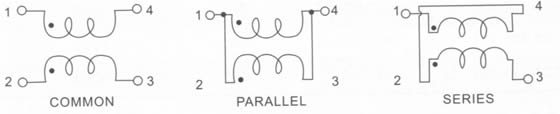

| ¡ñ¡¡CIRCUIT(ÔÀíͼ) |
|
| ¡ñ¡¡FEATURES |
Easy mounting on pc board. L-element
circuit ensures excellent attenuation
characteristics
over a wide frequency range |
| ¡ñ¡¡APPLICATIONS |
EMI countermeasures at signal lines of
personal computers microcomputers,
peripheral
devices,eT-2. Countermeasures against common-mode noise
at
composite video signals. |

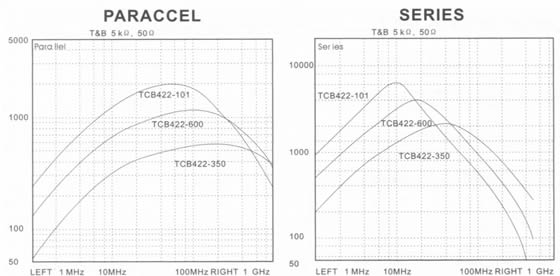

| ¡ñ¡¡Impedance & Frequency |
|
| ¡ï
Design As Gustomer's Requested Specifications. |
|
