Products>>Plug-in inductor series |
|
|
〓 LH TYPE |

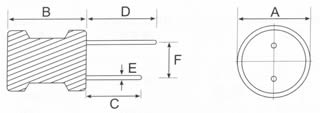

| ● EXTERNAL DIMENSIONS
UNIT：mm |
|
|
| PART NO． |
φ A |
B |
C(ref) |
D(ref) |
E |
F |
| LH0406 |
4.5±0.5 |
7.0±1 |
10 |
15 |
0.6 |
2.0 |
| LH0507 |
5.5±0.5 |
9.0±1 |
10 |
15 |
0.6 |
2.5 |
| LH0608 |
6.5±1.0 |
10.0±1 |
10 |
15 |
0.6 |
3.0 |
| LH0810 |
8.5±1.0 |
12.0±1 |
10 |
15 |
0.6 |
5 |
| LH0912 |
9.5±1.0 |
14.0±1 |
10 |
15 |
0.6 |
5 |
|
| ● PART NUMBERING
SYSTEM |
|
1 SERIES NAME 品名
指立式电感
2 DIMENSIONS 尺寸
外围×高度
3 INDUCTANCE
电感值
前两位为有效数字，第三位表零的个数
4 TOLERANCE CODE 公差
J:±5%,K:±10%,L:±15%M:±20%,P:±2526
,N:±30%
5 TUBE
套管 PVC SLECVE OR UL TUBE
6
PACKING CODE 包装方式
R:Tape&Reel（卷装）B:ln Bulk （袋装） |
| ● FEATURES |
Contain high-frequency ferrite.
Compararively large rated current.
Taping is alse
available which can be used in automated mounting
lines.
使用高频磁芯，具相对大的额定电流，亦可以打带以便自动插件。 |
●
APPLICATl0NSPower supplies,DC-DC
converters,TVs,VTRs,Computers, Computer
Peripherals,
Telephones,Air-Conditions, Home Electric
Appliance
eT-2.
使用于电源，DC-DC转换器，TVs,VTRs，计算机及其外围设备，Tel，空调，家用电器等。 |
| ★
Design As Gustomer's Requested Specifications. |
|
