〓 BCC-3 TYPE |

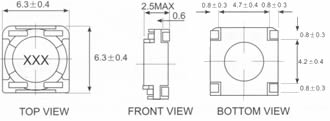

| ● EXTERNAL DIMENSIONS
UNIT：mm |
|
 |

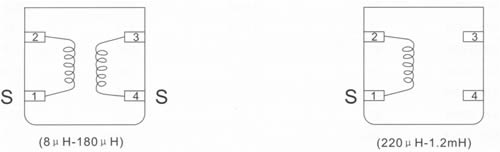

| ● CONNECTION(BOTTOM VIEW) |
 |
| ● PART NUMBERING SYSTEM |
 |
1 SERIES NAME 品名 S指备银 series，A指品名号
2
DIMENSIONS 尺寸 外围x高度
3 INDUCTANCE 电感值
前两位属有效数字，第三位表零的个数
4 TOLERANCE CODE 公差
J：±5％，K：±10％，L：±15％M：±20％，P：±25％，N：±30％
5 PACKING
CODE 包装方式 R：Tape&Reel(卷装)B：In Bulk (袋装) |
| ● SHAPES AND DIMENSIONS
UNIT：inch/mm |
● FEATURES
Various high power
inductors are superior to be high satu ration for
surface
mounting．
。
● APPLICATl0NSPower supply for VTR，OA equipment
Digital camera，LCD television set notebook PC，portable
communication equipments，DC／DC
converters，eT-2．
|
| BCC-36325 TYPE |
PART
NUMBER
|
INDUCTANCE
(μH)
|
DCRCmax)
(Q)
|
IDC(A)(max)
△U/L=-10%；△t=40℃
|
TESTFREQ．
|
| BCC-36325-8RON |
8 |
0．077 |
764 |
100KHZ |
| BCC-36325-100N |
1O |
O．104 |
712 |
100KHz |
| BCC-36325-150N |
15 |
0．131 |
556 |
100KHZ |
| BCC-36325-220N |
22 |
0．200 |
467 |
100KHZ |
| BCC-36325-330N |
33 |
0．264 |
374 |
100KHz |
| BCC-36325-390N |
39 |
O．381 |
354 |
100KHZ |
| BCC-36325-470N |
47 |
0．430 |
320 |
100KHZ |
| BCC-36325-560N |
56 |
0．480 |
290 |
100KHZ |
| BCC-36325-680N |
68 |
O．624 |
248 |
100KHZ |
| BCC-36325-820N |
82 |
0．671 |
237 |
100KHZ |
| BCC-36325-101M |
100 |
0．769 |
212 |
1KHz |
| BCC-36325-121M |
120 |
1．02 |
194 |
1KHZ |
| BCC-36325-151M |
150 |
1．43 |
174 |
1KHZ |
| BCC-36325-181M |
180 |
1．60 |
160 |
1KHZ |
| BCC-36325-221M |
220 |
1．77 |
142 |
1KHz |
| BCC-36325-271M |
270 |
2．30 |
130 |
1KHZ |
| BCC-36325-331M |
330 |
2．71 |
117 |
1KHz |
| BCC-36325-391M |
390 |
3．02 |
108 |
1KHZ |
| BCC-36325-471M |
470 |
3．93 |
98 |
1KHz |
| BCC-36325-561M |
560 |
4．46 |
91 |
1KHZ |
| BCC-36325-681M |
680 |
6．05 |
83 |
1KHZ |
| BCC-36325-821M |
820 |
6．79 |
75 |
1KHZ |
| BCC-36325-102M |
1000 |
9．98 |
60 |
1KHz |
| BCC-36325-122M |
1200 |
11．8 |
62 |
1KHZ |
|
