  Products>>Chip inductors Series

〓 CDH TYPE

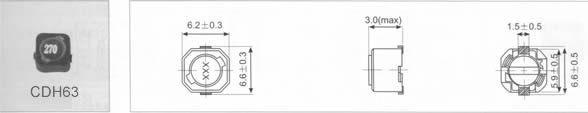

●　EXTERNAL DIMENSIONS UNIT：mm

● FEATURES
Various high power inductors are superior to be high satu ration for surface mounting．
。
● APPLICATl0NSPower supply for VTR，OA equipment Digital camera，LCD television set notebook PC，portable communication equipments，DC／DC converters，eT-2．
●　PART NUMBERING SYSTEM
1 SERIES NAME 品名 S指备银 series，A指品名号
2 DIMENSIONS 尺寸 外围x高度
3 INDUCTANCE 电感值 前两位属有效数字，第三位表零的个数
4 TOLERANCE CODE 公差 J：±5％，K：±10％，L：±15％M：±20％，P：±25％，N：±30％
5 PACKING CODE 包装方式 R：Tape&Reel(卷装)B：In Bulk (袋装)
● SHAPES AND DIMENSIONS UNIT：inch/mm

★ Design As Gustomer's Requested Specifications.
