Products>>Chip inductors Series |
|
|
〓 F TYPE |
| ● EXTERNAL DIMENSIONS
UNIT：mm |
|
|
| PARTNO． |
A |
B
|
C(max)
|
WEIGHT
GRAMS |
| F□-1P |
8．89±0．3 |
11．43±0．3 |
4．19 |
1．0 |
| F□-2P |
8．89±0．3 |
11．43±0．3 |
5．97 |
1．2 |
| F□-3P |
11．43±0．3 |
1 3．97±0．3 |
4．83 |
1．3 |
| F□-4P |
11．43±0．3 |
1 3．97±0．3 |
6．35 |
2．0 |
|
|

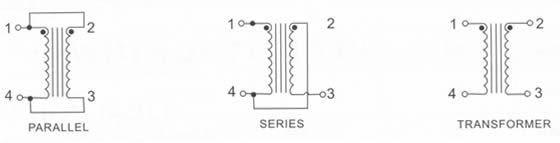

| ● CONNECTION DIAGRAMS |
 |
| ● PART NUMBERING SYSTEM |
|
1 SERIES NAME 品名 S指备银 series，A指品名号
2
DIMENSIONS 尺寸 外围x高度
3 INDUCTANCE 电感值
前两位属有效数字，第三位表零的个数
4 TOLERANCE CODE 公差
J：±5％，K：±10％，L：±15％M：±20％，P：±25％，N：±30％
5 PACKING
CODE 包装方式 R：Tape&Reel(卷装)B：In Bulk (袋装) |
● FEATURES
Higher
frequency 、low saturation 、low EMI radiation 、Pick and
place.
● APPLICATl0NSVGA display CARD、electronic
appliances、DC/DC conversion(parallel
mode)、Isolation/coupling(transformers)、Input
filter(serial model)
|
| ★
Design As Gustomer's Requested Specifications. |
|
