  Products>>Chip inductors Series

〓 CND TYPE                                                           See packing instructions

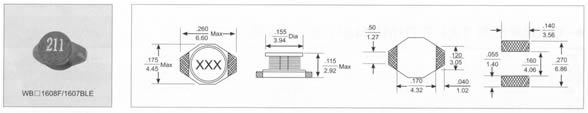

●　EXTERNAL DIMENSIONS UNIT：mm

● FEATURES
The Su rface Mount Inductors are designed for the smallest possible size and high performance They a re with high energy storage and very low resistance making them the ideai inductors for DC-DC conversion in the following application·

● APPLICATl0NS
VGA display card，Notebook Computers，PDAs，Stepup and stepdown converters，Flash Memory programmers，eT-2．
●　PART NUMBERING SYSTEM
1 SERIES NAME 品名 S指备银 series，A指品名号
2 DIMENSIONS 尺寸 外围x高度
3 INDUCTANCE 电感值 前两位属有效数字，第三位表零的个数
4 TOLERANCE CODE 公差 J：±5％，K：±10％，L：±15％M：±20％，P：±25％，N：±30％
5 PACKING CODE 包装方式 R：Tape&Reel(卷装)B：In Bulk (袋装)

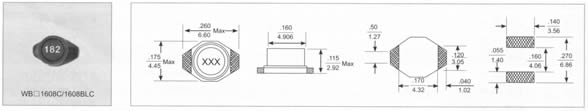

● SHAPES AND DIMENSIONS UNIT：inch/mm
