Products>>Chip inductors Series |
|
|
〓 CN
TYPE See packing instructions |

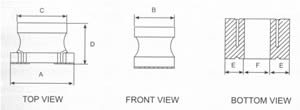

| ● EXTERNAL DIMENSIONS
UNIT：mm |
|
 |
| PARTNO． |
A |
B |
C |
D |
E(Min) |
F(Min) |
| CN1206 |
3．2±O．3 |
1．6±0．2 |
2．3±0．2 |
1．8±O．2 |
0．7 |
0．7 |
| CN1210 |
3．2±O．3 |
2．5±O．2 |
2．5±O．2 |
2．O±0．4 |
0．9 |
1．3 |
| CN1812 |
4．5±O．3 |
3．2±0．2 |
3．6±0．2 |
2．6±0．4 |
1．2 |
1．6 |
| CN2220 |
5．7±0．3 |
5．0±0．3 |
5．0±0．3 |
4．7±0．5 |
1．3 |
1．7 |
|
|
| ● PART NUMBERING SYSTEM |
 |
1 SERIES NAME 品名 S指备银 series，A指品名号
2
DIMENSIONS 尺寸 外围x高度
3 INDUCTANCE 电感值
前两位属有效数字，第三位表零的个数
4 TOLERANCE CODE 公差
J：±5％，K：±10％，L：±15％M：±20％，P：±25％，N：±30％
5 PACKING
CODE 包装方式 R：Tape&Reel(卷装)B：In Bulk (袋装) |
| ● FEATURES |
Various high power inductors are superior
to be high saturation for surface
mounting．
|
| ● APPLICATIONS |
Power supply for VTR，OA equipment Digital
camera，LCD television set notebook
PC，portable
communication equipments，DC/DC
converters，eT-2．
|
| ★
Design As Gustomer's Requested Specifications. |
|
