CD TYPE |
 |

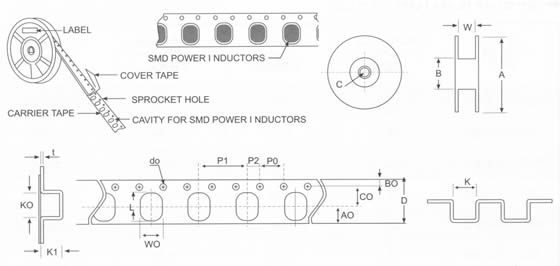

| ◆ REEL DIMENSIONS＆PACKING UNIT(卷轴尺寸及包装数量)UNIT:mm |
PART
NUMBER
|
DIMENSlONSOFREEL
卷轴尺寸 |
PACKAGlNGUNIT
包装数 |
| A |
B |
C |
W |
| CD63 |
330 |
75．0±2．00 |
13．50±0．50 |
16．O±0．50 |
1500Dcs/r |
| CD74 |
330 |
75．0±2．00 |
1350±050 |
160±0．50 |
1000Dcs/r |
| CDl05 |
330 |
75．0±2．00 |
13．50±0．50 |
24．0±0．50 |
500Dcs/r |
|
| ◆ CARRIER TAPE DIMENSl0NS(载带尺寸)UNIT:mm |
| SYM |
CD74 |
CDl05 |
CDl25 |
| A0 |
6．75±0．10 |
6．75±0．10 |
10．75±0．10 |
| B0 |
1．75±0．10 |
1．75±O．10 |
175±0．10 |
| C0 |
7．50±0．10 |
7．50±0．10 |
11．50±O．10 |
| D |
16．00±0．30 |
16．00±0．30 |
24．00±O．30 |
| K |
6．50±0．20 |
7．80±0．20 |
9．65±0．20 |
| KO |
710±O．20 |
8．50±0．20 |
10．90±0．20 |
| K1 |
4．55±O．10 |
5．60±0．10 |
6．00±0．10 |
| L |
7．50±0．20 |
890±020 |
11．30±020 |
| W0 |
6．90士0．20 |
8．20±0．20 |
10．05±O．20 |
| P0 |
4．00±0．10 |
4．00±0．10 |
4．OO±O10 |
| P1 |
12．00±0．10 |
12．OO±0．10 |
12．00±0．10 |
| P2 |
2．00±005 |
2．00±O．05 |
2．00±0．05 |
| d0 |
1．55±0．05 |
1．55±0．05 |
1．55±0．05 |
| t |
0．40±0．05 |
0．40±O．05 |
O．40±0．05 |
|
|
