Products>>Chip inductors Series |
|
|
〓 CDB
TYPE See packing instructions |

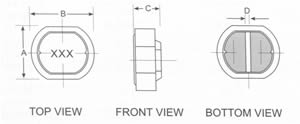

| ● EXTERNAL DIMENSIONS
UNIT：mm |
|
 |
| PARTNO． |
A |
B |
C |
D(Ref) |
| CDB74 |
7．4+0．5 |
7．85±0．5 |
4．5+0．5 |
2．1 |
| CDB105 |
9．6±0．5 |
1 0．0±0．5 |
5．0+0．5 |
2．9 |
| CDB125 |
11．6+0．5 |
1 2．6±0．5 |
5．4±0．5 |
3．1 |
|
|
| ● PART NUMBERING SYSTEM |
 |
1 SERIES NAME 品名 S指备银 series，A指品名号
2
DIMENSIONS 尺寸 外围x高度
3 INDUCTANCE 电感值
前两位属有效数字，第三位表零的个数
4 TOLERANCE CODE 公差
J：±5％，K：±10％，L：±15％M：±20％，P：±25％，N：±30％
5 PACKING
CODE 包装方式 R：Tape&Reel(卷装)B：In Bulk (袋装) |
| ● FEATURES |
Various high power inductors are superior
to be high saturation for surface
mounting．
|
| ● APPLICATIONS |
Power supply for VTR，OA equipment Digital
camera，LCD television set notebook
PC，portable
communication equipments，DC/DC
converters，eT-2．
|
| ★
Design As Gustomer's Requested Specifications. |
|
